Braces

Leviat offers a complete line of Meadow Burke braces to temporarily support and stabilize concrete panels to resist wind loads until all necessary permanent connections have been made. Each brace is anchored to the concrete floor slab, Deadman, or a Meadow Burke Brace Badger. The brace’s top foot attaches securely to an embedded brace insert connection.

• Variety of sizes to brace panels from 10 ft to 94 ft in height

• Braces can be used on the inside or outside of the structure

• All braces have additional length adjustment to simplify final plumbing

• Complies to ASCE 37-02 and ASCE 7-10 regarding basic wind speeds

• Engineered to be used with Meadow Burke’s Badger, Slam Anchor, MB Brace Bolt and Brace Insert















Performance Data

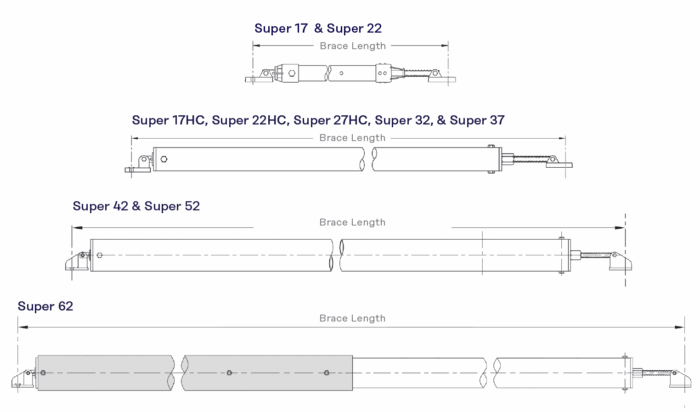

Brace Type Brace Length Brace Buckling Load Ultimate Brace Shoe Load Unit Weight
Super 62 * 62 feet 16.05 kips 17.87 kips 950 lbs.
Super 52 52 feet 16.05 kips 17.87 kips 680 lbs.
Super 42 42 feet 17.87 kips 17.87 kips 550 lbs.
Super 37 37 feet 10.36 kips 13.50 kips 315 lbs.
Super 32 ** 32 feet 13.50 kips 13.50 kips 275 lbs.
Super 22 ** 22 feet 11.00 kips 11.00 kips 136 lbs.
Super 17 17 feet 13.00 kips 13.00 kips 105 lbs.

* Super 62 brace requires some extension assembly on site. Installation instructions on back.
** Super 22 and Super 32 are available with 5-ft and 10-ft extensions.
NOTE: Use of an extension listed above reduces brace buckling load.
