PD-13 Dowel Cap
Meadow Burke PD-13 Dowel Caps are designed to allow movement of dowels in expansion joints for concrete paving applications.

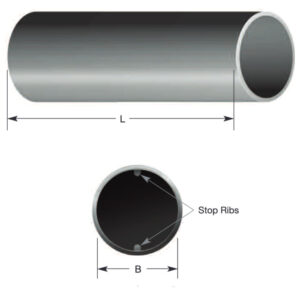

PD-13s are manufactured from recycled plastic polymers. The dowel caps are produced with an open cavity, stop ribs and a closed end, which allows for the insertion of a smooth or deformed rebar dowel.
PD-13 Dowel Caps provide approximately 3” of cover for the end of a smooth dowel or rebar.
PD-13 Dowel Caps are also designed to stop the end of the bar at least 1 inch from the closed end of the sleeve and shall not collapse during concrete placement.
Performance Data
‘
| Item Number | Size | Inside Dia. (B) | Length (L) |
|---|---|---|---|
| 791306 | 1/2″ o.c. | 0.575″ | 4″ |
| 791319 | 5/8″ o.c. | 0.700″ | 4″ |
| 791322 | 3/4″ o.c. | 0.825″ | 4″ |
| 791335 | 7/8″ o.c. | 0.950″ | 4″ |
| 791348 | 1″ o.c. | 1.075″ | 4″ |
| 791351 | 1-1/8″ o.c. | 1.200″ | 4″ |
| 791364 | 1-1/4″ o.c. | 1.325″ | 4″ |
| 791368 | 1-1/2″ o.c. | 1.575″ | 4″ |
